1、Main uses and scope of use：

☆ Suitable for precision machining of various holes, wedge grooves, and drainage outlets on PVC doors, windows, or PVC profiles.

☆ The intelligent CNC system and simple, intuitive human-machine interface make operation more convenient and quick. All machining processes are completed intelligently and automatically, requiring no human intervention, resulting in high efficiency, high precision, and safe and reliable operation.

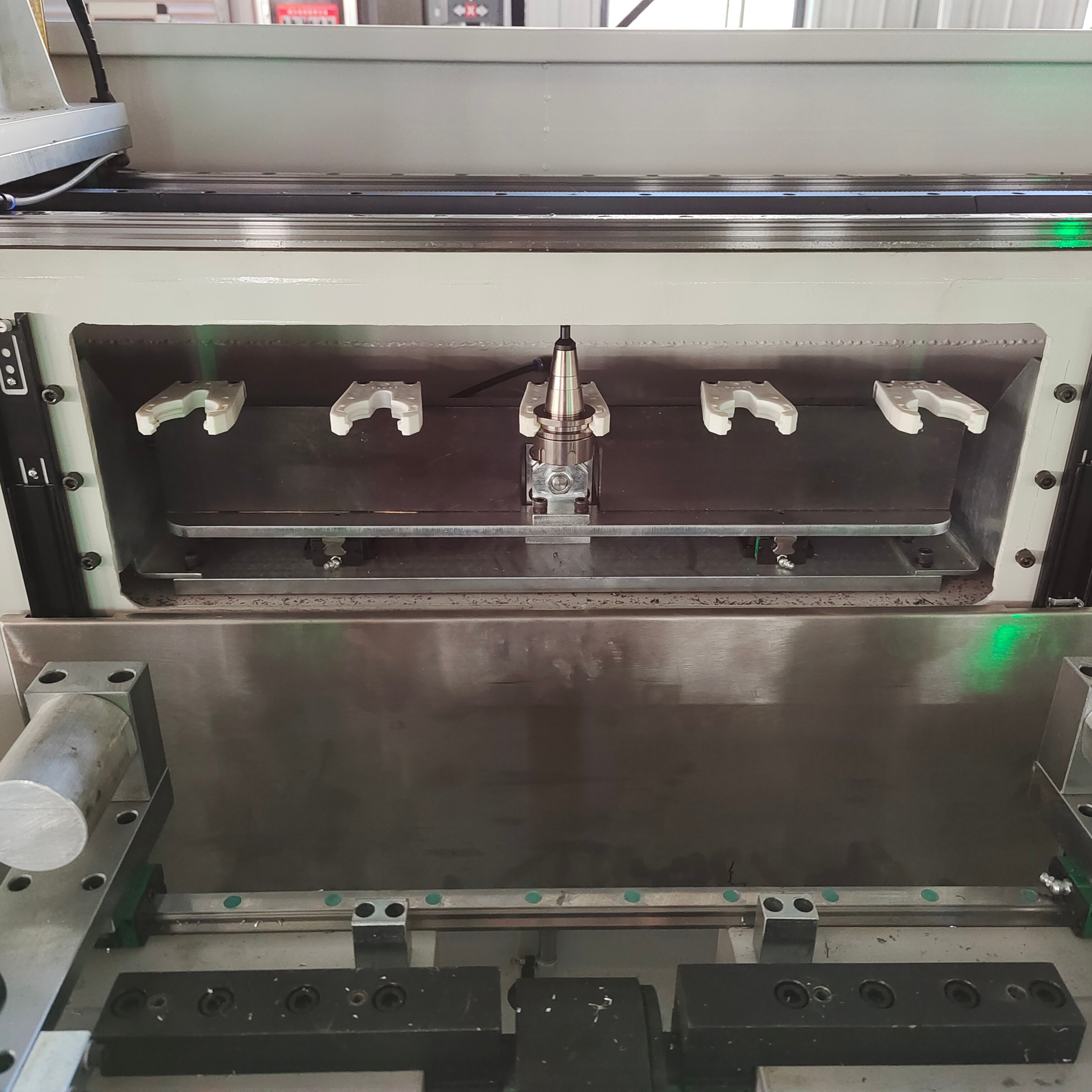

☆ Equipped with a five-station tool magazine, the machine automatically changes tools during machining, enabling milling of various hole diameters.

☆ The rotatable worktable can be rotated between -90°, 0°, and +90° positions, enabling milling of all holes on three surfaces in a single clamping operation.

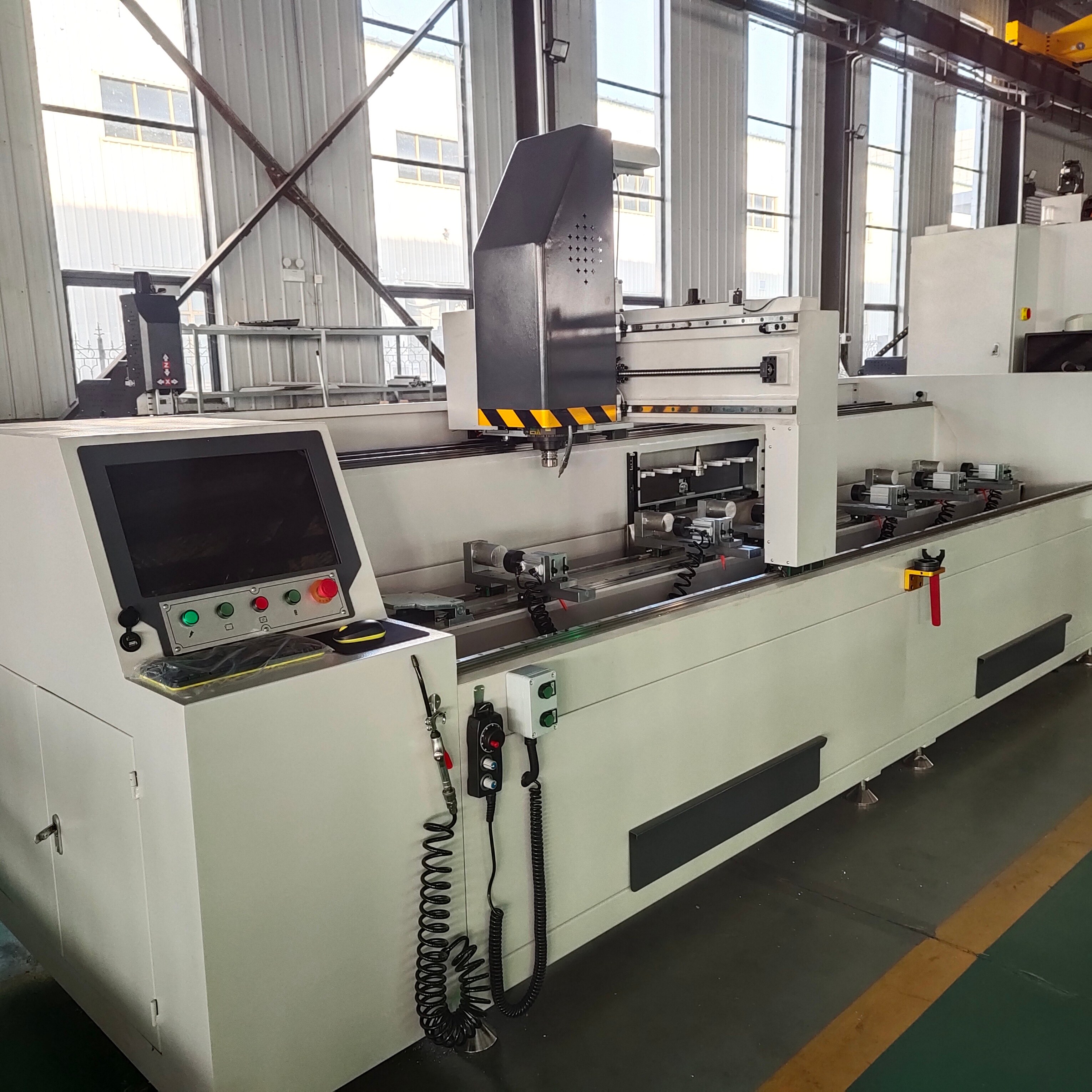

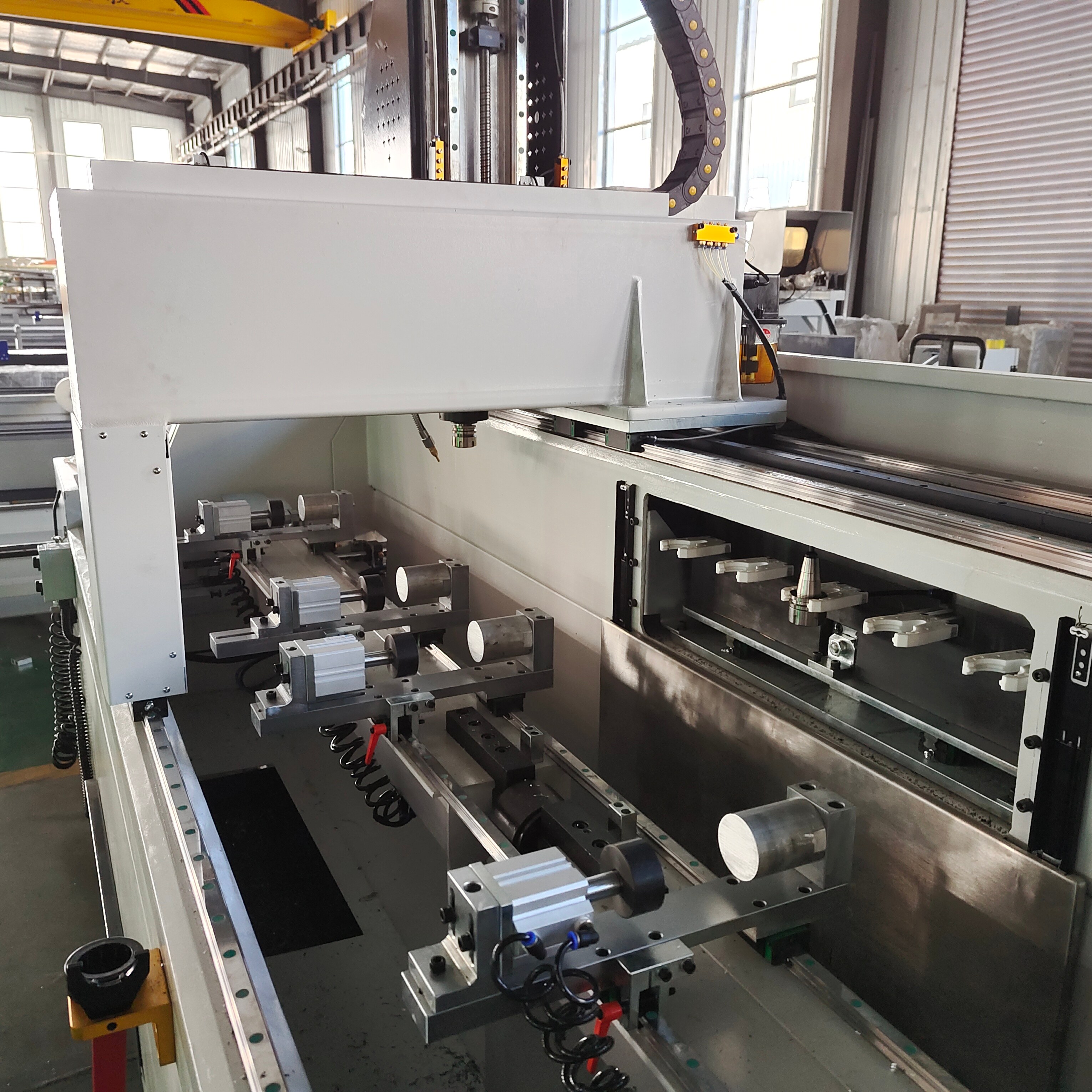

☆ The gantry-type design provides a strong bed and excellent overall rigidity, stable and reliable performance, and high precision. All movements are controlled by servo motors and pneumatic systems.

☆ The kinematic pairs utilize linear bearings, offering low resistance and high precision, ensuring smooth motion in the X, Y, and Z axes. ☆ The X-axis uses a helical rack and pinion system for power transmission, while the Y and Z axes use ball screws for power transmission, ensuring machining accuracy.

☆ The main components of the machine head are constructed of cast iron and high-strength aluminum alloy, resulting in a compact and robust structure.

☆ The imported high-speed electric spindle offers stable rotation, low noise, and high cutting performance.

☆ A unique chip collection device ensures a cleaner worksite.

2、Main specifications and technical parameters：

3、Main components configuration
