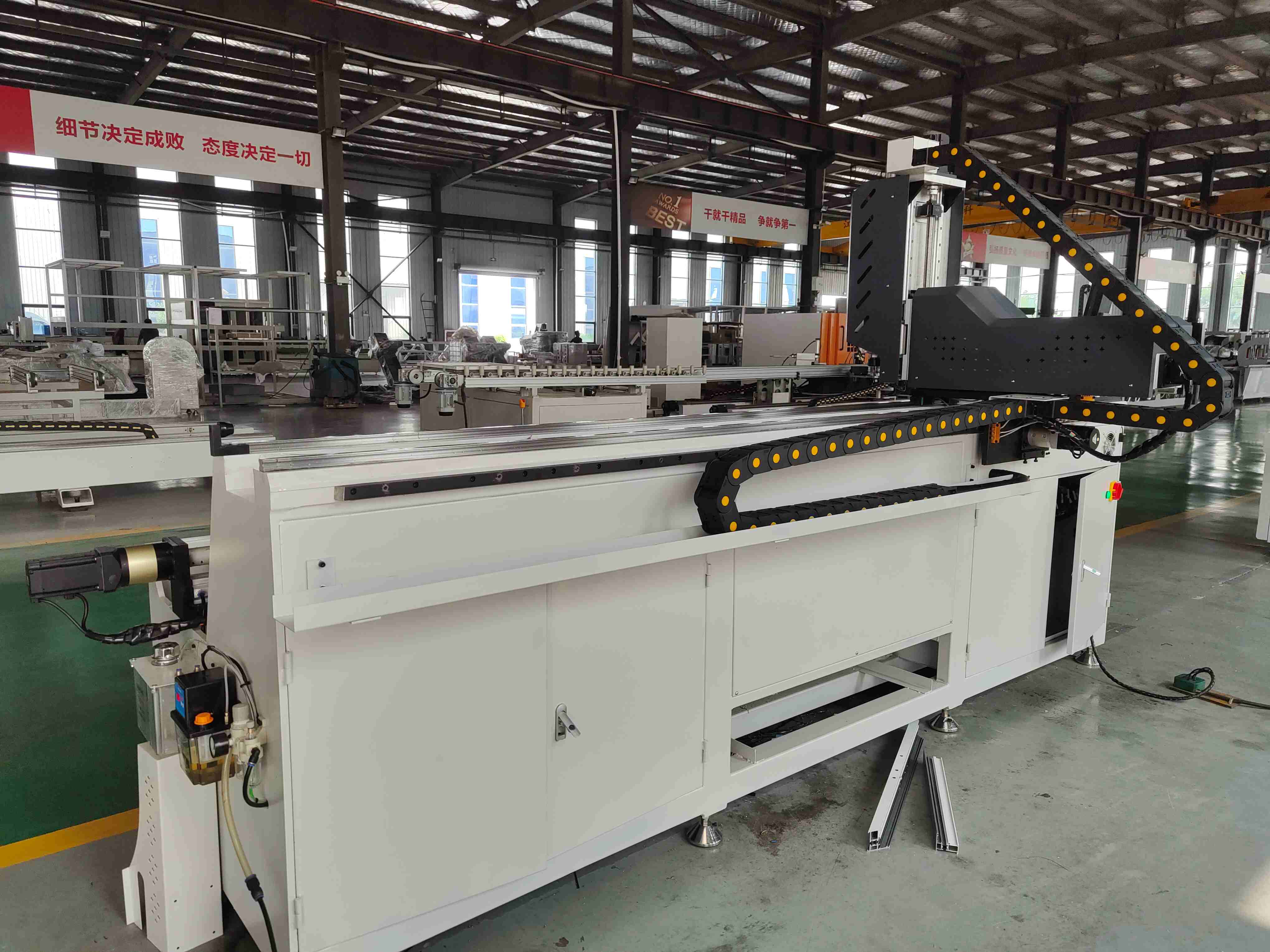

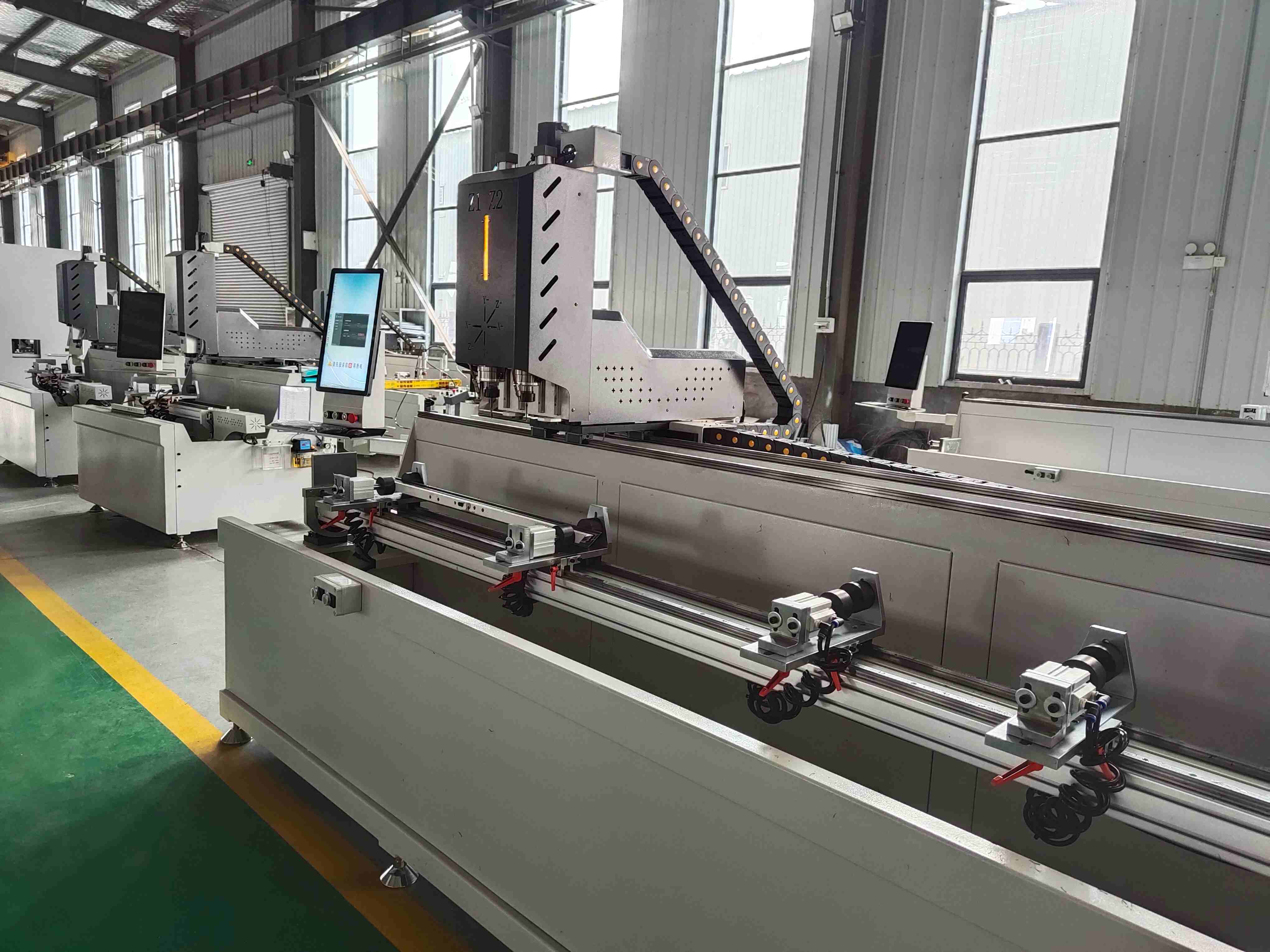

CLXBC2-CNC-3000
If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!
Business Support
TEL
1、Main uses and scope of application：
☆ Suitable for milling various types of holes and grooves on PVC profiles.

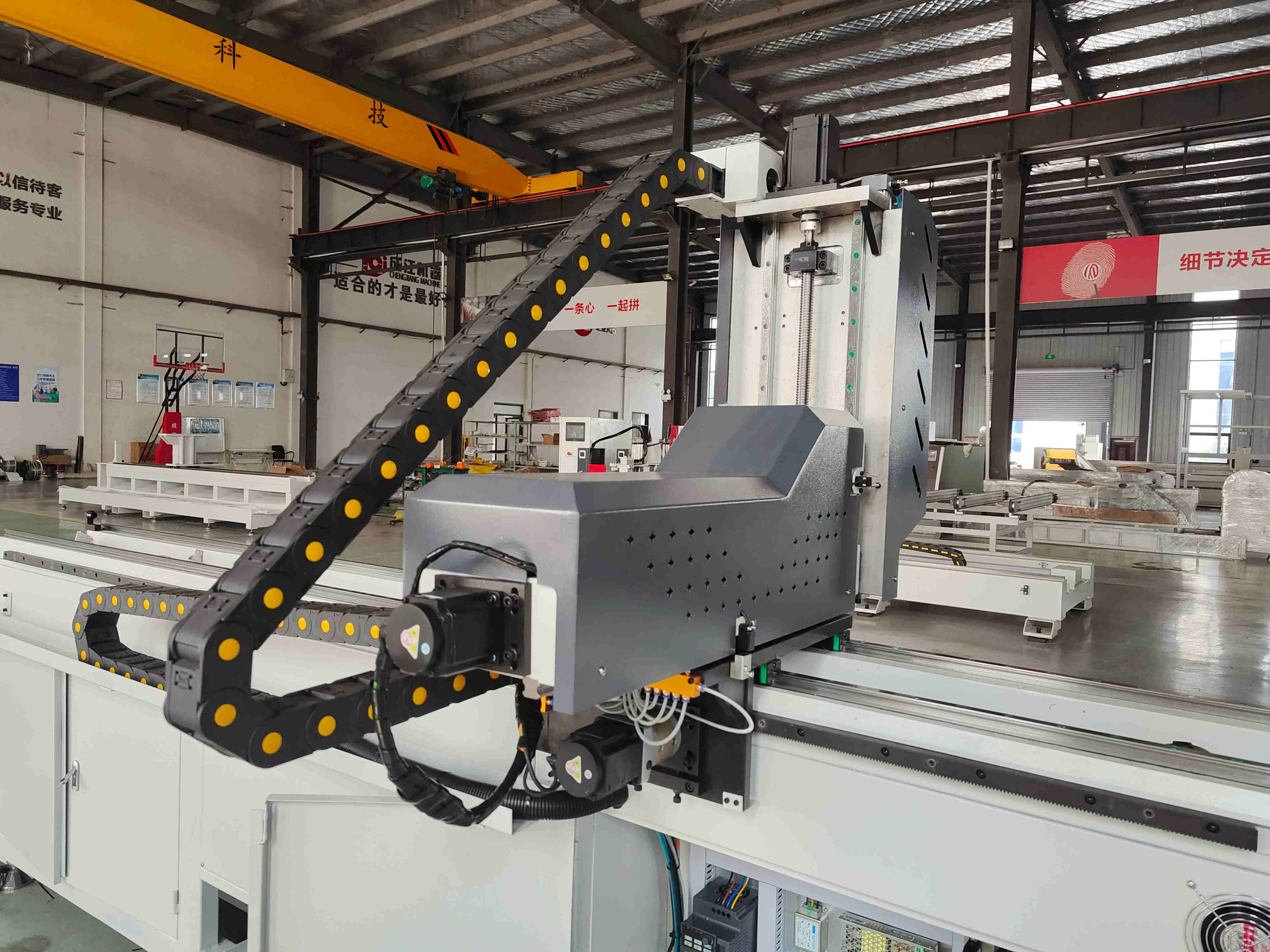

☆ Utilizes high-precision linear guide rails, gear racks, and imported servo motors to ensure smooth movement and high positioning and machining accuracy.

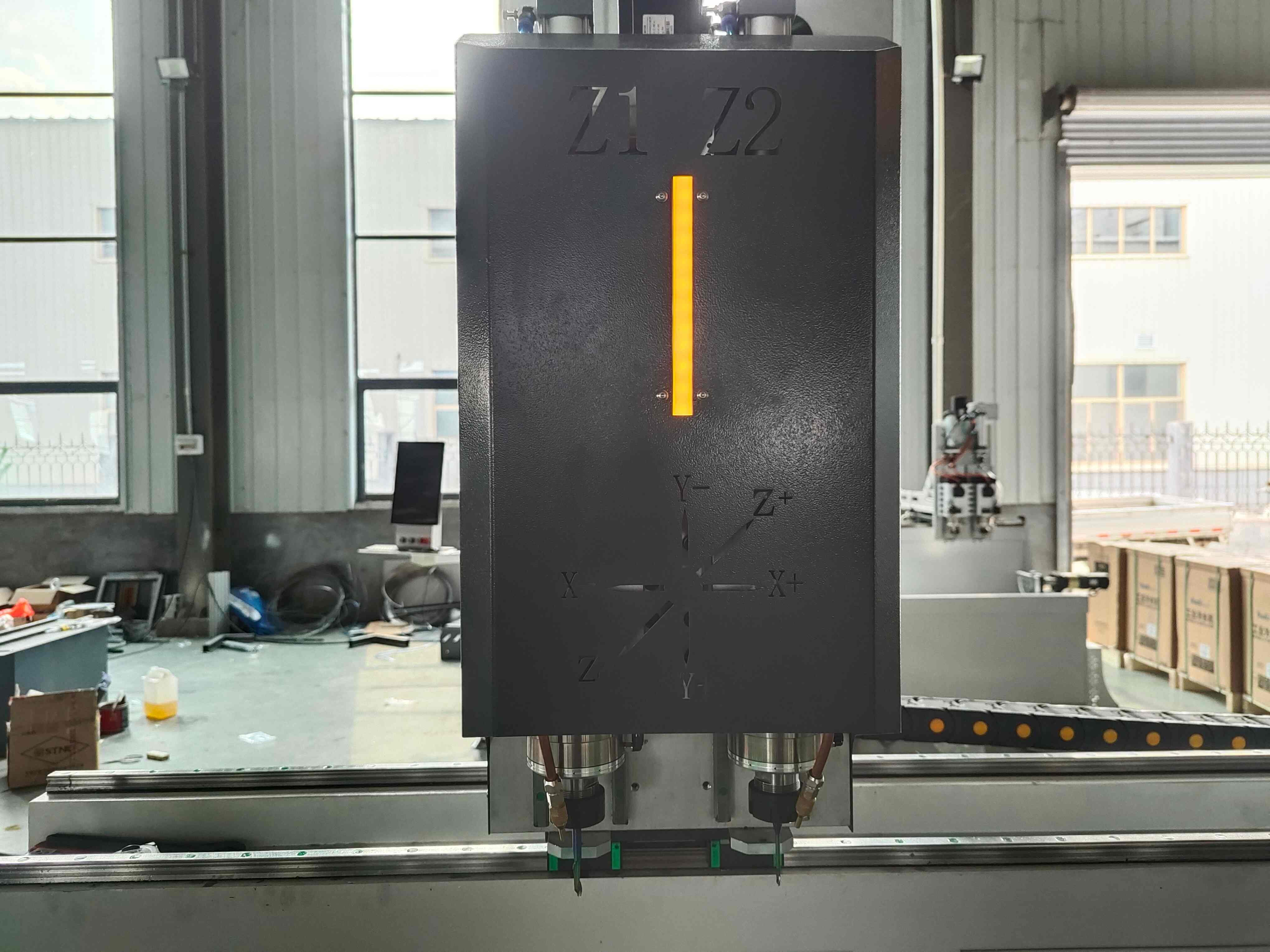

☆ Employs an imported high-speed electric spindle for stable rotation, low noise, and strong cutting ability.

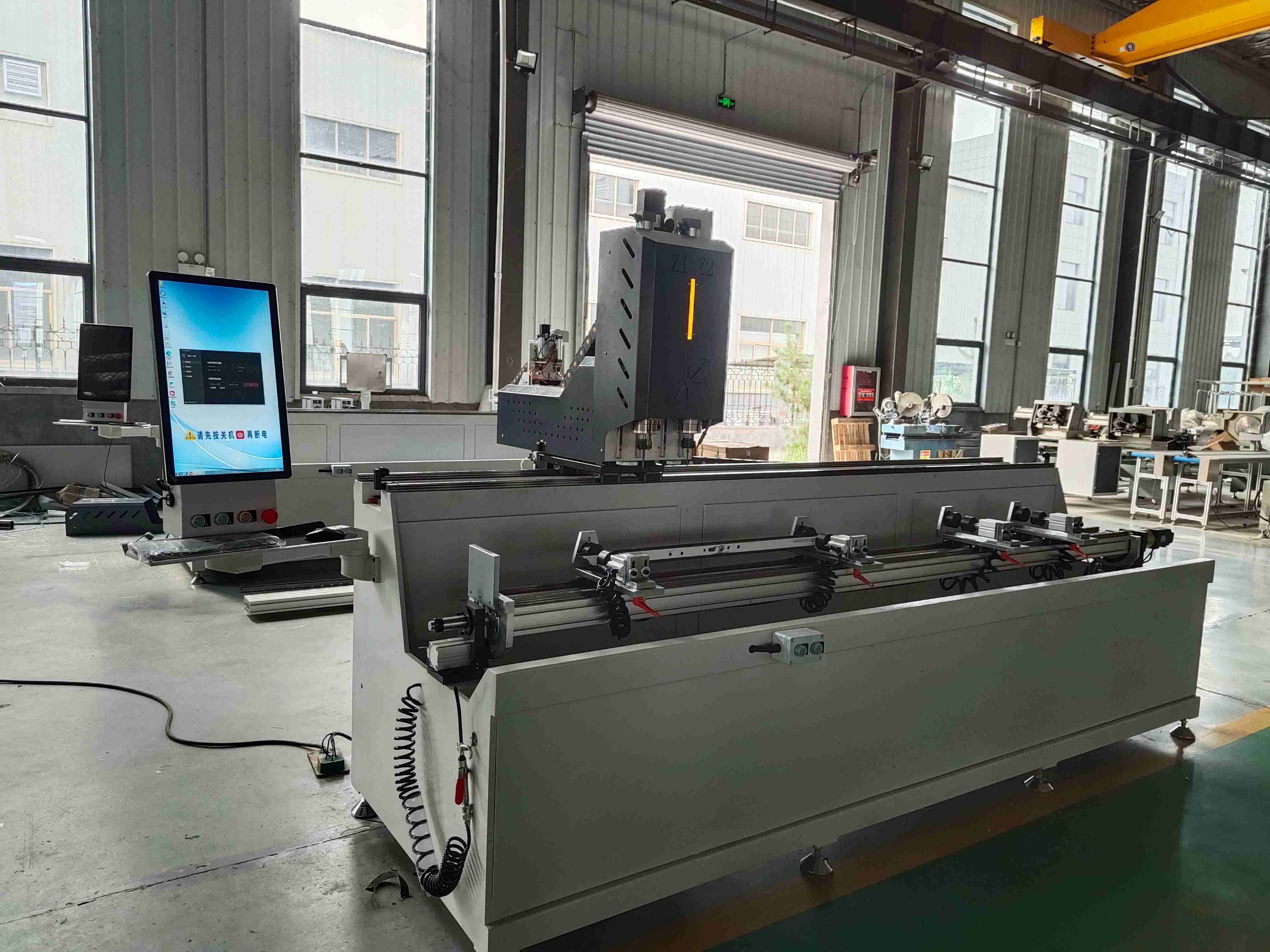

☆ The intelligent CNC system and simple and intuitive human-machine interface make operation more convenient and efficient.
2、Main specification s and technical parameters：
Content | Technical parameters |
Content | Technical parameters |
Power supply | 380v 50Hz | Overall power | 11.5kw |
Tool holder | ER32-Φ8mm | Working pressure | 0.5～0.8MPa |
Spindle speed/power | 18000rpm/4.5KW | Number of clamps | 4 |
Machining size range (width * height * length) | 140*140*3000mm | X-axis operating speed | 0～60m/min |
X-axis travel | 3200mm | Y-axis operating speed | 0～15m/min |
Y-axis travel | 250mm | Z-axis operating speed | 0～15m/min |
Z-axis travel | 250mm | Overall net weight | 1000kg |
Overall dimensions | 3700*1500*1900mm |
3、Main component configuration
Component Names | Brands | Remarks |

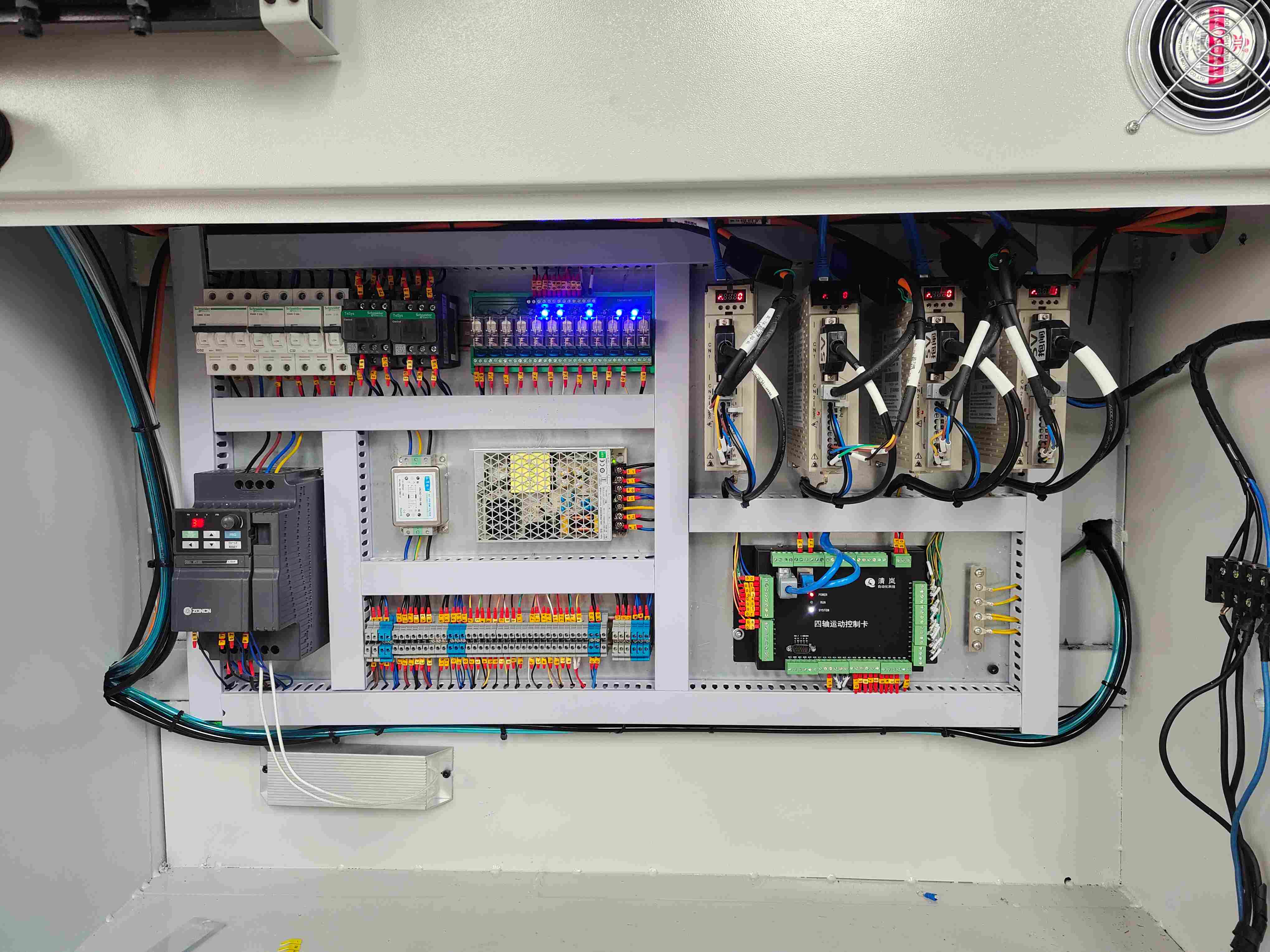

CNC system | Qinglan System | Joint venture brand |
Push button switch | ABB | Swiss brand |
Terminal block | Weidmüller | German brand |
Cylinder | B&R | Domestic brand |
Air hose | You shun | Taiwanese brand |
Guide rail | PEK | Italian brand |
Ball screw | PEK | Italian brand |
