1、Equipment Features

☆ Suitable for milling various types of holes and slots in PVC profiles.

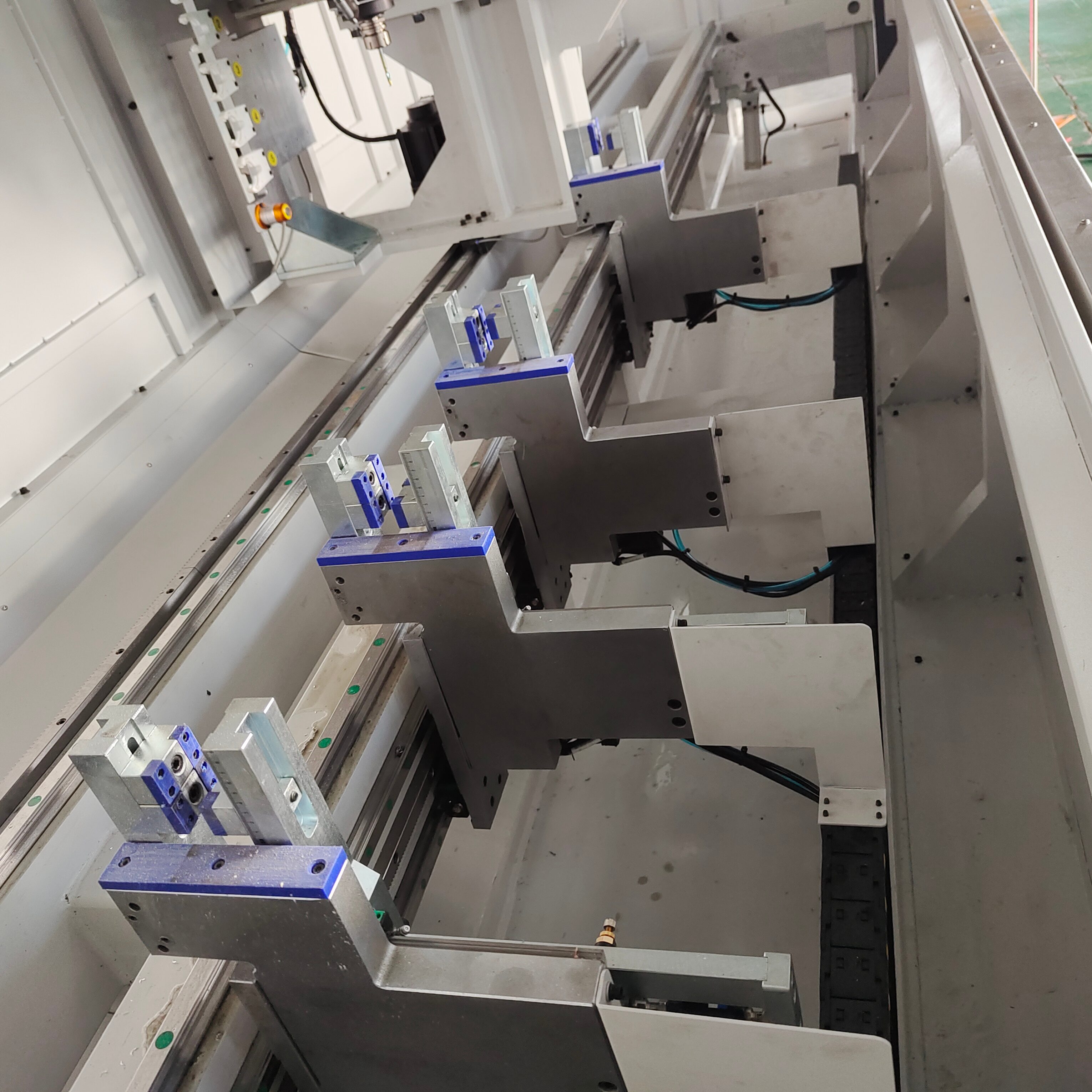

☆ The workpiece clamping system features an automatic clearance function.

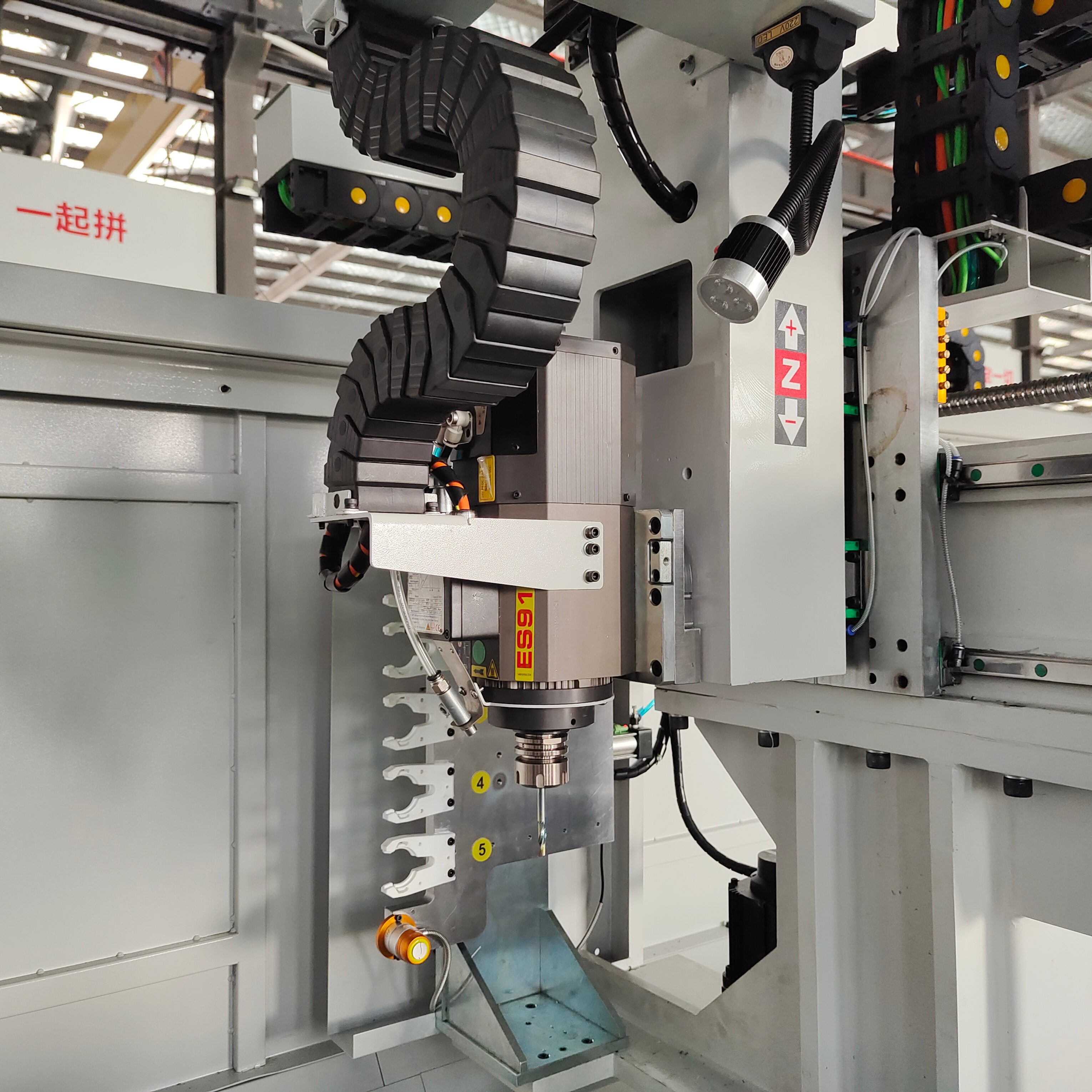

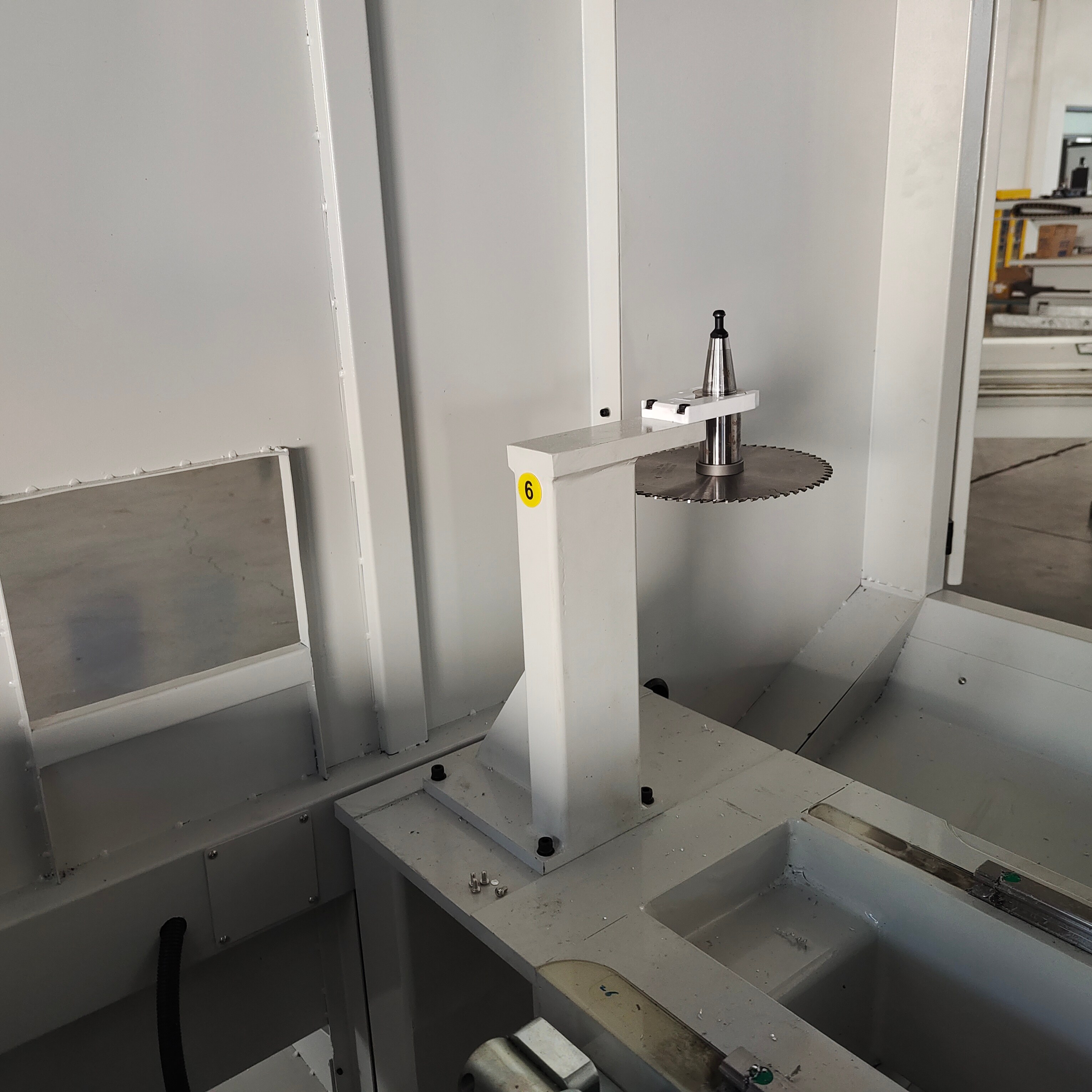

☆ Equipped with a tool magazine for automatic tool changing during processing, enabling the machining of holes with different diameters.

☆ This CNC drilling and milling machine is designed for processing various shaped holes, wedge slots, and drainage slots in PVC door, window, or curtain wall profiles. It features three continuously moving CNC axes (X, Y, Z) for superior precision and efficiency. The rotatable spindle motor can switch between -90°, 0°, and +90° positions, allowing for the milling of all shaped holes on three faces in a single clamping setup.

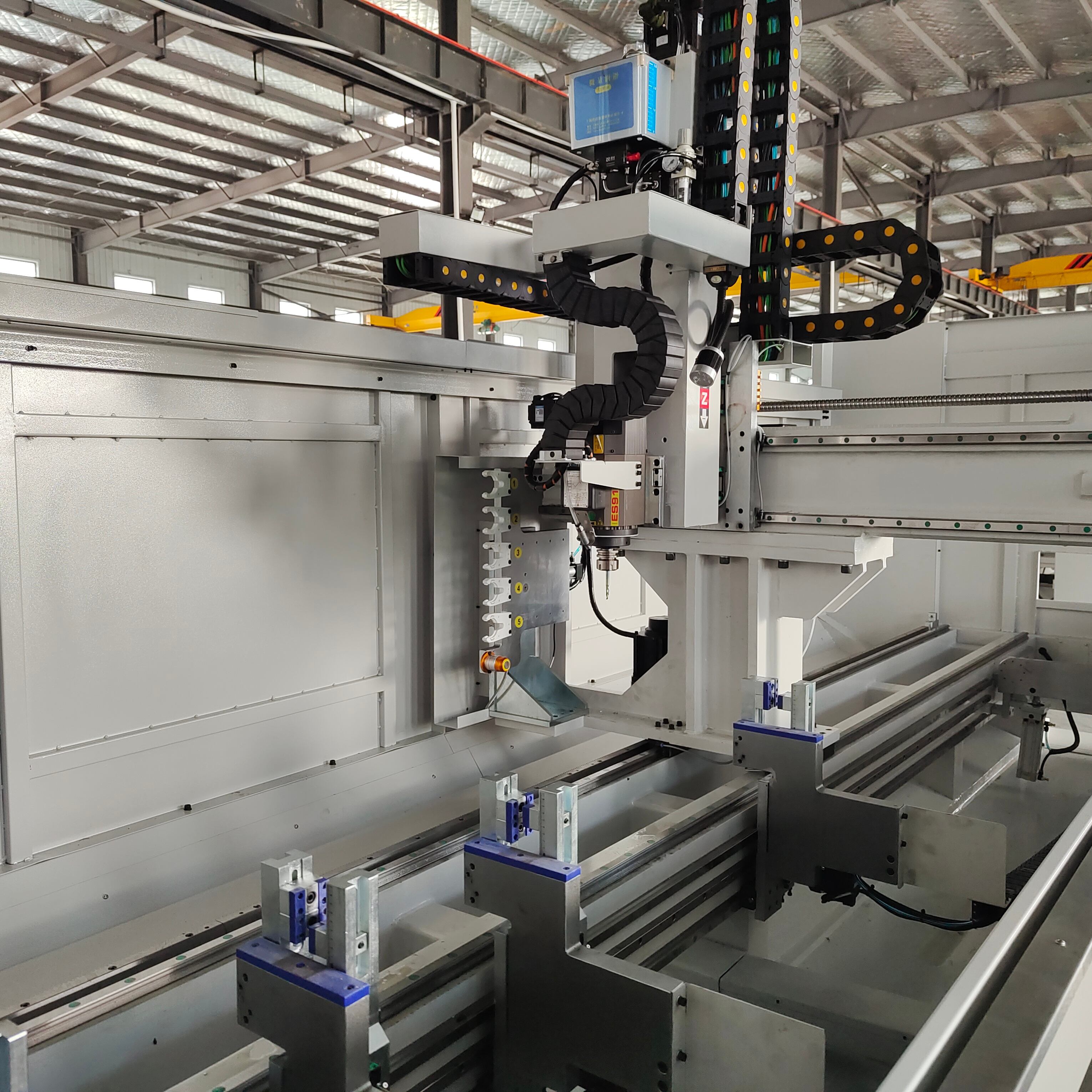

☆ The machine utilizes a gantry structure, offering high bed strength, excellent overall rigidity, stable and reliable performance, high working precision, an attractive appearance, and ease of operation. All movements are driven by servo motors and pneumatic systems. Linear motion bearings are used for motion components to minimize resistance and ensure high precision. Once the fixture position is manually set and the workpiece is loaded, the entire machining process is completed automatically, ensuring high efficiency, safety, and reliability.

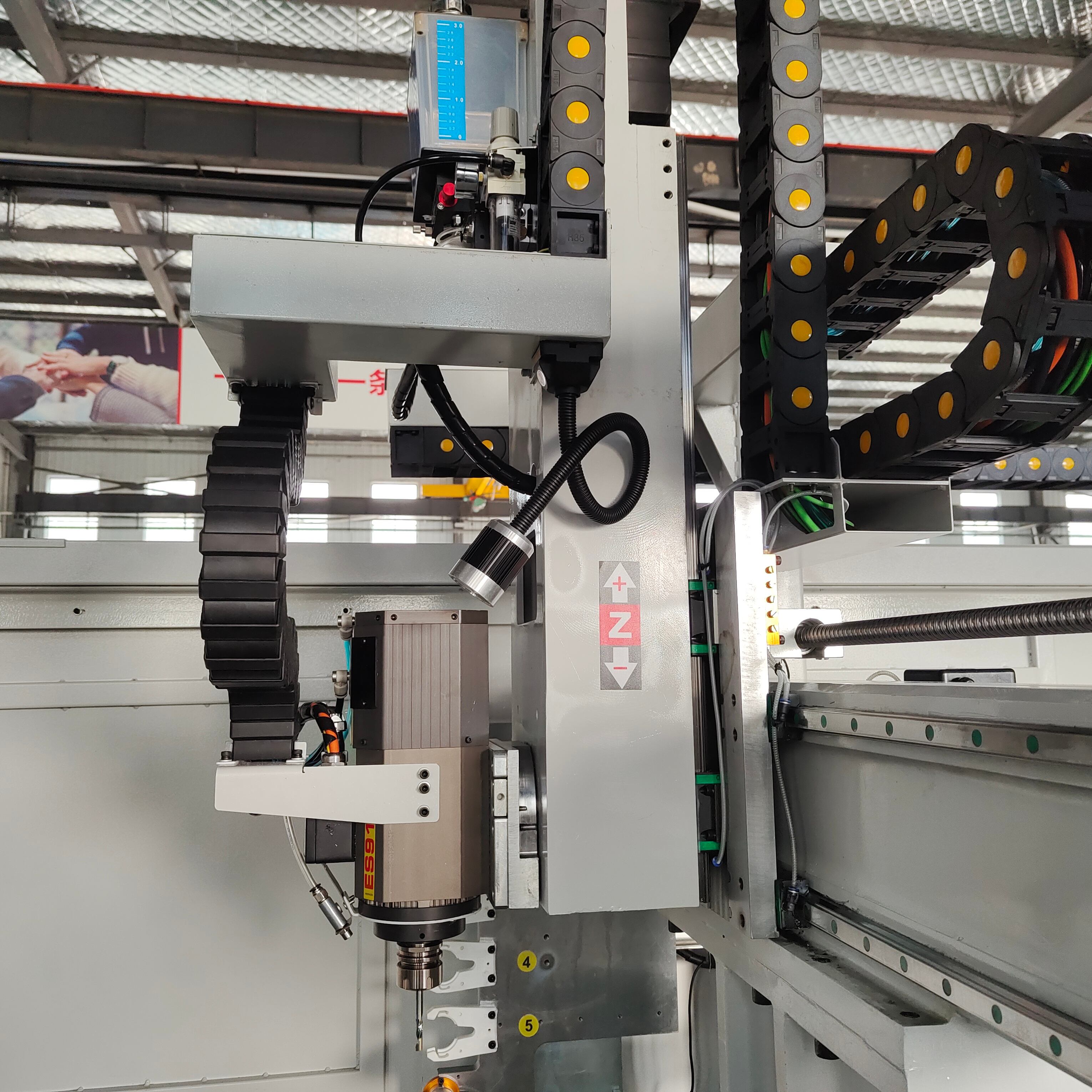

☆ Key components of the machine head are made of cast iron and high-strength aluminum alloy, featuring a compact, rational, and robust design. Linear guide rail systems are used for all three axes to ensure smooth movement. Power transmission is achieved via helical gear and rack for the X-axis, and ball screw assemblies for the Y and Z axes, guaranteeing machining precision.

☆ High-precision linear guide rails, ball screws, gear-and-rack systems, and imported servo motors ensure smooth motion and high positioning and machining accuracy.

☆ Uses an imported high-speed electric spindle offering stable rotation, low noise, and powerful cutting capability.

☆ An intelligent CNC system and a simple, intuitive human-machine interface make operation convenient and efficient.
